SPECIFICATIONS

Brand Name: keepLiNK

Origin: Mainland China

Function: POE

Function: QoS

Function: SNMP

Function: VLAN Support

Number of Interfaces: 44

Certification: CE

Certification: FCC

Certification: RoHS

Switch Type: Gigabit Switch

Package: Yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: KP-9000-54XGPM-X6-ACR

Transmission Rate: 10/100/1000Mbps

VLAN: Yes

Switch Capacity: 216G

Packet forwarding rate: 160.7Mpps

MAC address table: 32 K

Buffer: 16 M

Forwarding delay: <10 us

VLAN: 3k

PoE Protocol: IEEE802.3af/at

PoE Power Budget: 400W

PoE Port: 1-48

Input Voltage: AC 100-240V 50/60Hz

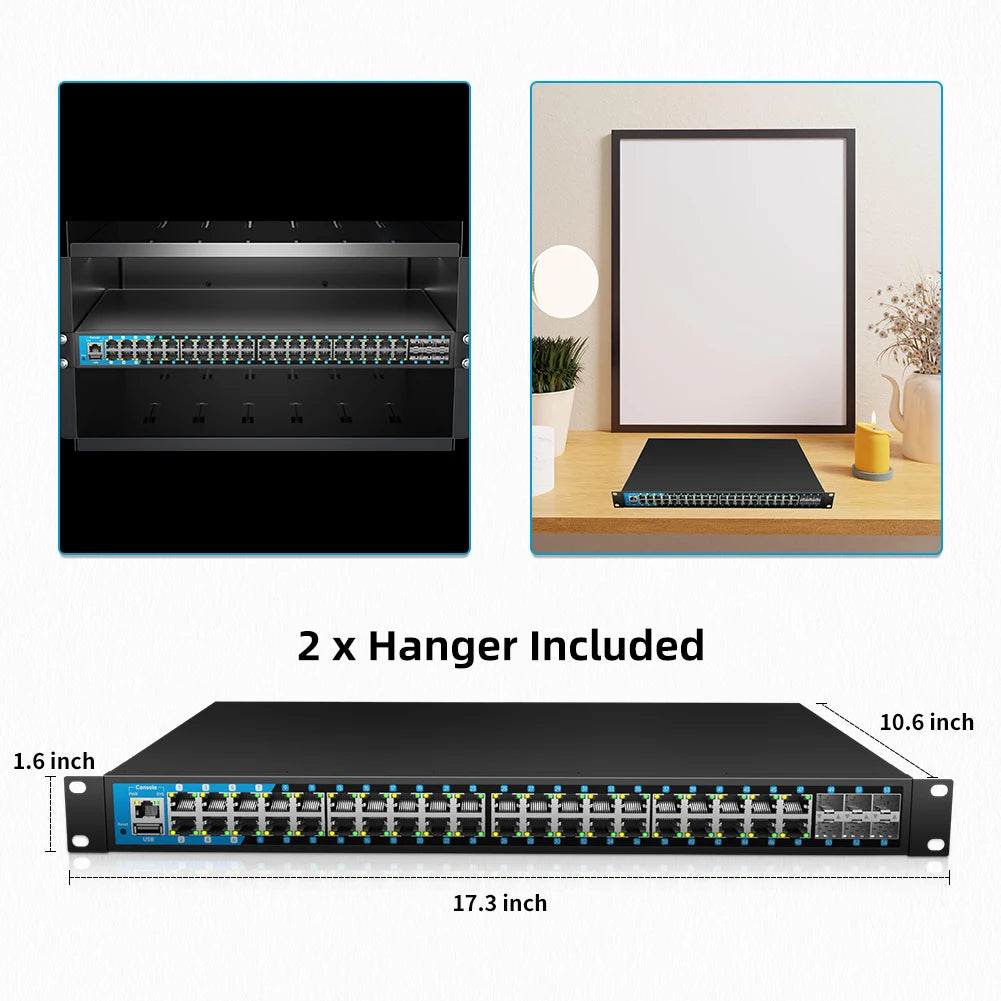

Dimensions: 440 x 284 x 44 mm

Mounting: Rack-Mounted

Weight: 4.2 kg

Ethernet Port: 48-PoE Gigabit

SFP Port: 6 x 10G SFP+

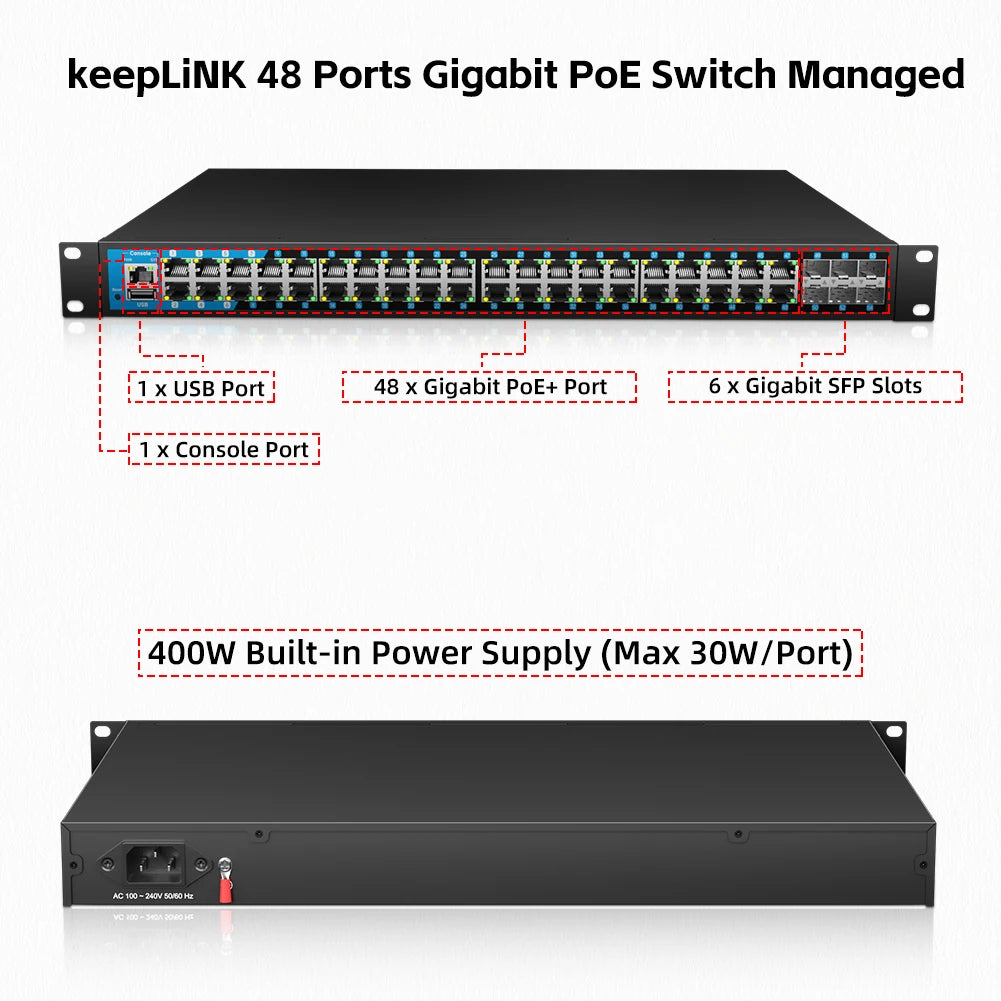

【High Performance】KP-9000-54XGPM-X6-ACR PoE Switch equipped with 48 Gigabit PoE+ ports, 6 10G SFP slots, with a switching capacity of 216G, ensuring stable and reliable data transmission.

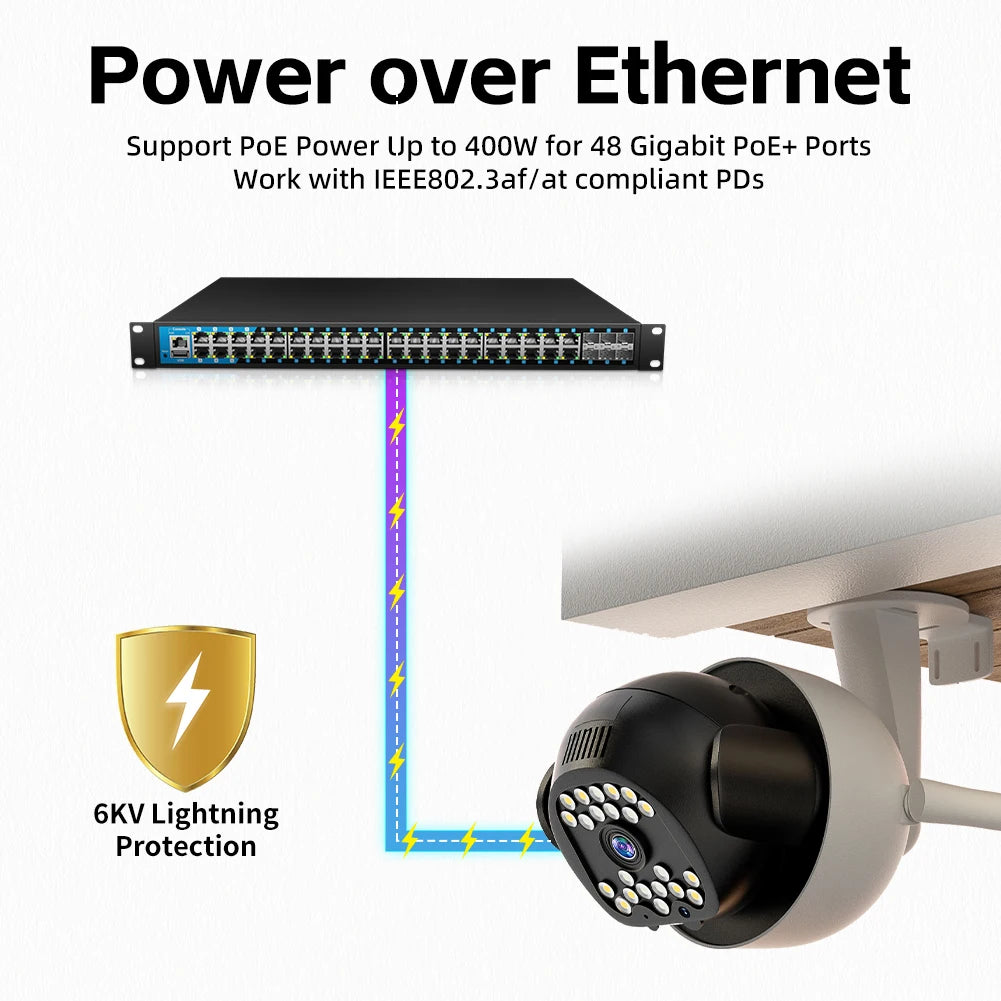

【Power over Ethernet】Supports IEEE802.3AF/AT and can provide up to 30W of power per port, with a total power consumption of 400W. This allows the switch to power devices such as IP cameras, wireless access points, and VoIP phones, eliminating the need for separate power sources.
【L2/L2+/L3 Managed】Prioritize your traffic and guarantee high quality of video or voice data transmission withL2/L2+/L3 QoS, IGMP Snooping, Link Aggregation and Flow Control.
【Enhance network security】Advanced security features include 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X radius authentication and more.
【Fan cooling】The metal shell of the switch is designed with scientific heat dissipation holes, combined with fan cooling, to make heat dissipation more efficient. It can operate reliably in temperatures ranging from -10℃ to 50℃.
This PoE switch adopts WEB management and is not equipped with a cloud platform, but if you already have a cloud platform, the device supports cloud management through the MQTT protocol.
